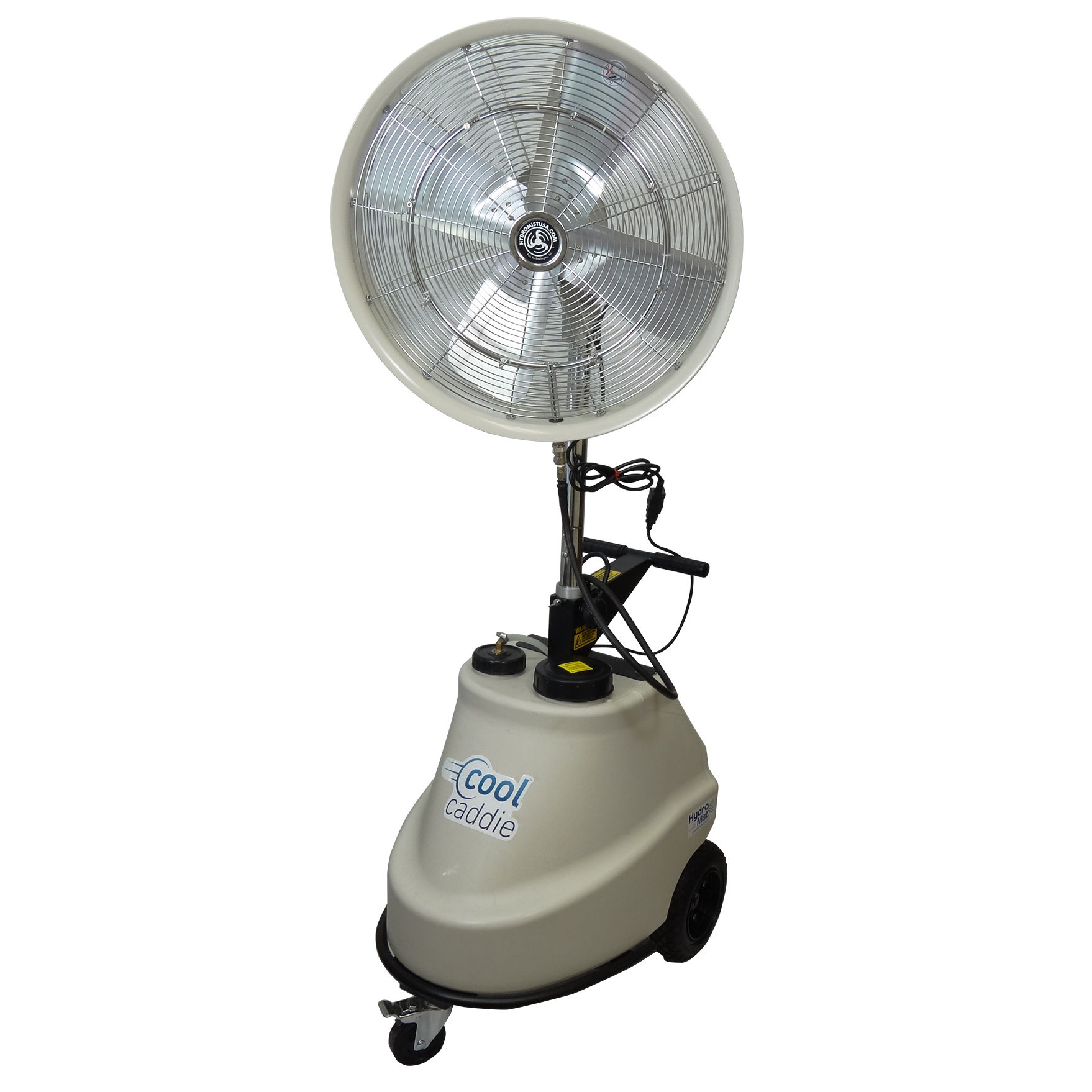

24” Cool Caddie

Description

A portable misting fan with a water tank and filtration system provides the best advantage of mobility and convenience.

Features
• 24″ Oscillating, Variable Speed Fan With Stainless Steel Cage
• Aluminum Fan Blade
• Adjustable Height Fan Easily Moves ~59″ to ~70″ at center
• Stainless Steel Nozzles
• Four Misting Cycle Modes
• Built-in Water Tank Holds About 16 Gallons
• Can Run Continuously While Connected To External Water Source*
• Built-In Water Filter Via Hose Connection

Safety
• Low Water Level Switch: turns off the pump when the water tank is too low
• Float Valve: shuts of the water source to avoid tank overflow
• TEFC Pump Motor: enclosed motor reduces the chance of electric shock
• TEFC Fan Motor: enclosed motor reduces the chance of electric shock

Application
• Designed for temporary indoor/outdoor cooling and landscaping.
• Suitable for backyard BBQ party, outdoor events, exhibition, garden
restaurant, and sports activities.

Features
• Variable-speed, 90º oscillating fan
• Adjustable height fan head: ~59″ to ~ 70″ at center
• Fan shroud focuses on air flow
• Stainless steel nozzles
• Four misting cycle modes
• Mist always on
• 30s mist on / 30s mist off
• 40s mist on / 40s mist off
• 50s mist on / 50s mist off
• Integrated water tank
• Low water level safety switch
• Mechanical water overfill safety switch
• Built-in water filter with garden hose inlet
• High-Pressure Relief valve
• Can run while attached to a water source
• Overfill switch maintains the tank water level
• Enclosed fan & pump motors reduce electric shock
• External recirculation path prevents pump overheat
• Integrated cart handles
• Rear rubber tread tires
• Front locking caster wheel
• Bumper

Specifications
• Part Number: FTC-P-24-8
• Dimensions: 28″ D x 22” W x ~69″ to ~80″ H
(adjustable height)
• Weight: 112 lbs.
• Electrical: 110V, 60Hz, 12.5 Amps, 1375 Watts
• Fan Blade Size: 24″
• Fan Head Size: 20.5″
• Coverage Area: ~300 sq. ft.
• Maximum Run Time: 4 hrs on tank / all day with
hose attached
• Tank Size: 15.85 gal.
• Output: 0.18 gpm
• Nozzles: 5 each with 0.008’’
• Water Filter: 1 each built-in
• Fan RPM: max 1750
• System Water Pressure: 1000 psi
• Noise Level: ~50 dB
• Temperature Drop: ~25º F
• Color: Beige
• Warranty: 1-year manufacturer’s warranty
